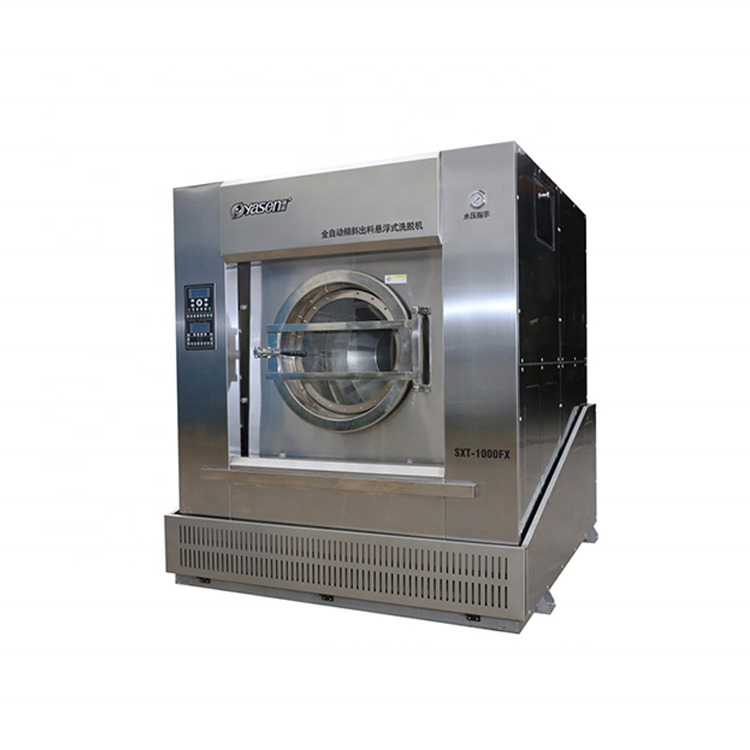

Industrial Hotel.factory .laundry 150kg hospital automatic laundry tilting washing machine

1.0 Sets
MOQ
Industrial Hotel.factory .laundry 150kg hospital automatic laundry tilting washing machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 1 Year, 1 year
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Free spare parts, Online support
Power: 15kw
Weight: 5700kg
Size: 2270*2450*2460mm
Product name: Automatic Tilting Industrial Washer-Extractor
Model: SXT-1500FX
Capacity: 150kg
Used for: Hotel.factory .laundry Hospital
Heating: Electric Heating or Steam Heating
Material: Stainless Steel
Certificazione: CE/OHSAS18001/ISO14001
Power Supply: 380/3/50 (V/P/Hz)
Brand: YASEN
Informazioni di base
Certificazione: CE/OHSAS18001/ISO14001
Model Number: SXT-1500FX
Termini di pagamento e spedizione
Descrizione di prodotto
1. Products Description
Use:
SXT-FX Series Washer-extractor is suitable for hotel,restaurant,hospital,garment factory,industry-mining enterprise as well as individual washing-dyeing.It is used for washing cotton,wool,woolen,chemical fiber and other fabrics. Short introduction:
Full-automatic control by computer control system SXT-FX washer-extractor has professional computer control system,excellent capacity and super function ,it contains 30 programmable procedures and 5 standard programs, and all design is near to human feature. User can control work liquid-level,wash temperature ,wash time,and efficiently satisfy with wash request in different situations.
High strength,long durability Creative structure from drum design of excellent stainless steel ensures that machine lifespan is prolonged during overload situation. Adopting advanced limit principle to design outer vat is made by stainless steel,it can resist corrosion and have high stability. Different design of high-strength big shaft-pedestal and high-accuracy short shaft can effectively reduce transverse vibration moment .Bearing of major shaft adopt high accurate core,so that prolong use lifespan and durability. Seal technology of major shaft have acquired state invention patent,double design of water-proof,imported seal material of fluorine rubber,special compartment design,assuring that protect bearing and improve use lifespan.
Leading slight vibration of industry washer Because of scientifically adding overload weight at the front of suspended object,gravity of suspended object and center of vibration source can combine in working state,so that reach perfect balance of suspended object. Spring of vibrationproof effciency and effective vibration-reducing rate to 98%.
Excellent design and fine production Frequency-conversion drives,endless speed adjusting stable,quiet rum. High-quality bearing,long lifespan. Imported seal material of major shaft ,patent technology design ,effectively resists high temperature and super acid-alkali. Stainless steel panel,high corrosion proof(back panel is galvanization). Safe door-lock union devise of patent technology ensure safety. Five compartment automatic detergent adding system,injection moulding structure of nylon combination,high corrosion proof. Larger diameter loading door and human design conveniently load and unload,so reduces labor strength. Adopting steam heating,hot water heating.
Installation and Test
(1)Free technical train at factory
(2)Free technical guide through network
(3)On-site service under contract
Warranty:
Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping
Model
SXT-1000FX
SXT-1500FX
Rated Capacity(kg)
100
150
Drum Dimension(mm)
Φ1200*888
Φ1470*880
Washing Speed(r/min)
35
30
Extracting Speed(r/min)
670
610
Rated Voltage(V)
3P/220V/380V
3P/220V/380V
Motor Power(kw)
7.5
15
Tiling Angle of Unloading
20
20
Water Inlet(lnch)
G1.5 "
G2 "
Steam Inlet(lnch)
G1 "
G1.5 "
Electric Heating Power(kw)
72
-
Steam Pressure(Mpa)
0.3-0.5
0.3-0.5
Consumes Proportion of Steam(kg/kg)
0.5
0.5
Drainage Dimension(mm)
Φ127
Φ127x2
Air Pressure(Mpa)
0.4-0.6
0.4-0.6
Noise dB(A)
Less than 78
Less than 78
Dimension WxDxH(mm)
2050*2000*2260
2270*2450*2460
N.W.(kg)
3620
5700

Want to know about the product? Feel free to contact us

2. Main Parts Introduction
3. About Shanghai Yasen Company
4. Customer Evaluation
5. Packaging and shipping
Middle East
Africa
European And
Amercian Area
Asia
Products
Sea Transport （Door to Door）
Deliver Time（Cheaper）
15-22 Days
25-40 Days
15-35 Days
6-14 Days
Spare parts
Express(Door to Door)
Deliver Time（Fastest）
DHL
4 Days
5-6 Days
3-4 Days
2 Days
FedEx
5 Days
6 Days
4-5 Days
3-4 Days
UPS
6 Days
6 Days
6-7 Days
5-6 Days
TNT
6-7 Days
6-7 Days
5-6 Days
4-6 Days
Air Transport
Deliver Time（Fastest）
4-5 Days
5-8 Days
4-6 Days
1-3 Days
6. FAQ

Q1: Are you manufacturer? I don't want to cooperate with trading company.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Q2: If I purchase washer extractor and dryer from your company, will you provide free spare parts?

A: Yes,we are the manufacturer, We are a professional washing machine factory with more than 28 years manufacturing experience.you are welcome to visit our factory at your any time and checking our machines on site.

Q3.What kinds of service we offer?

A: Yes,the manufacturer shall provide one-year warranty for main parts of the machine (excluding vulnerable parts). In case of quality problems in normal use, spare parts will be provided free of charge from the original manufacturer.

Q4:How about the Certification？

A:Our industrial laundry equipment are certificated by CE; Our factory adopts the management system of ISO9001 and ISO14001.

Q5:How about the Voltage？

A:The voltage will be customized according to your local requirement;Different voltage and frequency to meet different countries' power standard;

Q6: How about the quality warranty?

A: We have strict control of quality from material to shipment. We have a good quality control system. Every step will be checked during manufacturing.

Q7: What is the production leading time?

A:For regular models, it takes 10-20days for delivery.  for customized items according to order conditions.

Q8:When you have some doubts about washer extractor using?

A:Please chat to our on-line technician, who are ready to assist you in 24 hours/day.
